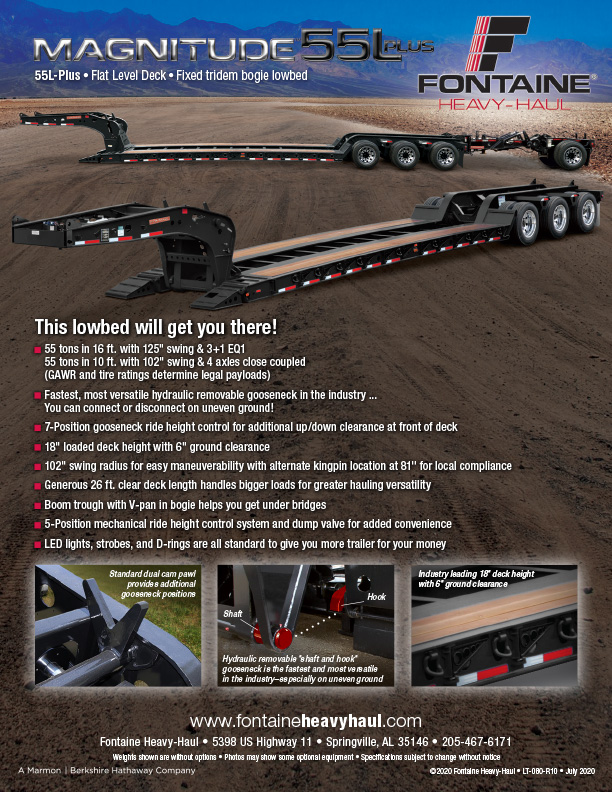

Magnitude 55L Plus

Magnitude 55L Plus Lowbed Trailers

Flat Level Deck,
Fixed Tridem Bogie

Hydraulic removable gooseneck lowbed trailer for the construction industry

  • 55 tons
  • Flip neck (flip box) ready
  • Flip axle ready
  • 302 jeep ready
  • EQ1 spreader ready
  • Fixed bogie
  • Air ride bogie

Standard Specifications

Capacity

  • 55 tons in 16 ft. with 125" swing, flipbox deployed & 3+1 EQ1
    55 tons in 10 ft. with 102" swing & 4 axles close coupled
    (GAWR & GVWR determine legal payloads)

Goosneck

  • Design: Hydraulic removable non ground bearing design
  • Swing radius:102 inches (11 feet 11 inches overall gooseneck length)

Deck

  • Deck Type: Flat Level Deck (FLD) design - standard 26 feet clear deck length
  • Deck width:8' 6" deck width (unless optional deck width is selected)
  • Loaded deck height: 18" loaded deck height
  • Ground clearance:  6"
  • Flooring: 2" nominal apitong – side rails only
  • Deck to bogie connection: Fixed

Axles

  • Standard trailer Axles: 3
  • Axle Capacity: 25,000 lb. nominal capacity per axle
    NOTE: GAWR determined by suspension type, brakes, tires, and other components
  • Axle spread: 54.5" standard

Bogie

  • Deck connection: Fixed
  • Suspension: Air ride
  • Rear bogie height: 41 inches
  • • Bogie width: 8' 6"

Tires

  • Tire size: 275/70R/22.5

Weight

  • from 24,020 ± 3%

Standard Features

  • Framework: All main longitudinal members fabricated with 100,000# minimum yield steel flanges with 50,000# webs
  • Loaded Fifth Wheel Height: 50 inches nominal; Dual Cam Pawl Arm Assembly with 7 ride height positions
  • Kingpin: Removable kingpin at 102 inch radius
  • Power Source: Setup for wet line operation
  • Electrical Receptacle: J560 7-pin connector
  • Front ramps: Manual front approach ramps included
  • Extension Brackets: 13 pair - 26 total removable swing type, 2 pair - 4 total heavy duty removable hook-on type
  • Front Bogie Ramp: Included
  • Tool Boxes: 2 Fully covered trays in front of deck between mainbeams with lockable covers.
  • Crossmembers: On 23-1/4 inch centers
  • Brakes: 16.5 inches x 7 inches with 5.5 inches autoslacks - heavy duty brake drums - outboard mount
  • Lift Axle: Air lift third axle
  • Wheels: 8.25 x 22.5 steel disc - hub-piloted
  • Bolsters: Recessed load bearing between all axles and rear of last axle
  • Boom Trough: V-style boom trough with bolt-in V pan
  • Ride Height Control: 5-position Mechanical ride height control system
  • Dump Valve: Manual Dump Valve (Push Pull)
  • Bumper: Heavy duty V-style rear bumper
  • Electrical System: DOT sealed beam and harness with LED lights and 4 inch flush mounted battery powered amber strobes
  • Lash Rings: 19 pair - 38 total
  • Flag Holders: Flag holders - 2 pair
  • VIN Plate: Bilingual VIN plate
  • Registration/Document Holder

Magnitude Feature Demo

Options

  • Dual kingpin at 81 inch and 102 inch radius
  • 13 HP (min.) Gasoline powered auxiliary power unit
  • Flat Level Deck (FLD) design - 25 feet clear deck length
  • Flat Level Deck (FLD) design - 27 feet clear deck length **Note: If 60 inch axle spread option is selected, trailer is over 53 feet in length
  • 9 foot deck width
  • 2 inch center deck kit with outrigger boards - center boards secured, outside boards loose
  • 2 inch center deck kit with all boards secured
  • Hammer plate installed over recessed crossmembers (perforated plate underneath forms 2 storage areas)
  • Extra duty axle/brake system package
  • 60" axle spread
  • Dust shields on all axles
  • Chain lift first axle
  • Weld-on load bearing wheel covers
  • 8.25 x 22.5 LvL One buffed/steel disc inside - hub-piloted or 8.25 x 22.5 LvL One buffed wheels
  • Spring brakes on axle 2
  • ABS
  • Tire size up to 305/70R/22.5
  • Optional attachments
  • 302 jeep
  • 23" flip box
  • 51/60 flip axle
  • EQ1 spreader
  • Rigid spreader bar
  • Load scales, tire inflation systems, paint, tires, wheels & more
    • 302 jeep
    • 23" flip box (dust shields available)
    • EQ1 spreader
    • Rigid Spreader Bar
    • 51/60 flip axle
  • Load scales, tire inflation systems, paint, tires, wheels & more
