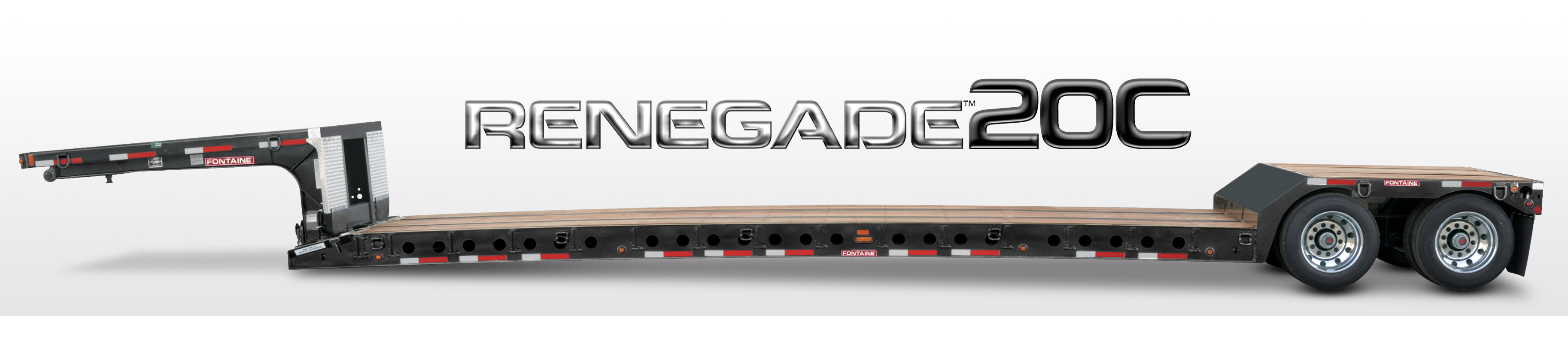

Renegade 20C Lowbed Trailers for Canadian Market

Tandem air ride, fixed bogie

Mechanical gooseneck lowbed trailer for commercial industry

• 40 tons
• 60" axle spread
• 20 inch Loaded Deck Height
• Amber strobes / battery backup
• Compatibility: Designed to accept optional flip neck extension and third flip axle
• 255/70R/22.5 tires

Standard Specifications

Capacity

• 40 tons (80,000 lbs.) in 16 feet - GAWR and tire ratings determine legal loads

Trailer

• Length: 27 feet 7 inches clear deck length
• Width: 8 feet 6 inches

Goosneck

• Design: Mechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loaded - Swing radius of
• Swing radius: 81 inches
• Platform: Full-width gooseneck platform with 1 1/8 inch wood floor

Deck

• Deck type: Flat level deck design

• Deck length: 8 feet 6 inches


• Loaded deck height/clearance: 20 inches with 6 inches ground clearance

• Flooring: 1 3/8 inch nominal wood (full width)

Axles

• Standard trailer axles: 2
• Axle Capacity: 25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.
• Axle spread: 60 inches (between axles)

Bogie

• Deck to bogie connection: Fixed
• Covered Rear Bogie: Rear bogie platform with 1 1/8 inch wood floor
• Rear bogie height: 40 inches

Tires

• Tire size: 255/70R 22.5 H ply OEM Standard


Weight

• Estimated weight from 15,355 lbs.


Standard Features

• Framework: All main longitudinal members fabricated with 100,000# minimum yield steel flanges with 50,000# webs
• Tool Box: Lockable toolbox in riser portion of GN between MB
• Gooseneck Fenders: Aluminum fenders at rear of gooseneck
• Electrical Receptacle: J560 7-pin connector
• Crossmembers: On 12 inch centers
• Front of deck sloped top down to assist in loading with traction cleats
• Front Bogie Ramp: Sloped steel bogie ramp (full width) with cleat bars
• Outriggers: 13 pair - 26 total outriggers, 1 pair 2 total heavy duty outriggers
• Brakes: 16.5 inches x 7 inches with 5.5 inches autoslacks - heavy duty brake drums - outboard mount
• Spring Brakes: Spring brakes (2 axles)
• Suspension: Air ride with automatic controls
• Wheels: 8.25 x 22.5 steel disc - hub-piloted
• Dust Shields: Dust shields on 2 axles
• Bumper: 3 tail light package
• Connections for Future Axle Attachment: Air and electrical connections to go along with connecting ears
• Electrical System: Two (2) pair 4-way receptacles (One pair on gooseneck, one pair on bogie)
• Lighting: DOT sealed beam and harness with LED lights and 4 inch flush mounted battery powered amber strobes
• Lash Rings: 8 pair - 16 total
• Flag Holders: 2 pair flag holders
• ABS: 4S/2M system without diagnostic tool and cable
• Liquid Filled Gauge: Included
• Winches: 13 - three bar type, 5 per side on deck, 2 mount roadside on gooseneck, 1 mounted curbside center of gooseneck
• Special J Hooks: Mounted opposite of winches
• Marker Lights: 7 marker lights per side including mid-turn
• Accent Package: Stainless steel bumper insert
• VIN Plate: Canadian VIN plate
• Registration/Document Holder: Install registration/document holder

Options

• 36 inch flipbox (gooseneck extension) with provision for removable guide rollers - Increases swing radius to 117 inches
• 8 Pair of D-rings recess mounted in floor inboard of outside beams
• Mini boom trough and traction cleats installed on sloped bogie ramp
• Wheels: 8.25 x 22.5 LvL One buffed outside/steel inside - hub-piloted or
  8.25 x 22.5 LvL One buffed wheels
• Flip Axle: Rear Axle -Steel disc wheels or Rear Axle -LvL One buffed outside /steel disc inside or Rear Axle -LvL One buffed wheels
• Dust shields on Flip Axle
• Paint options
