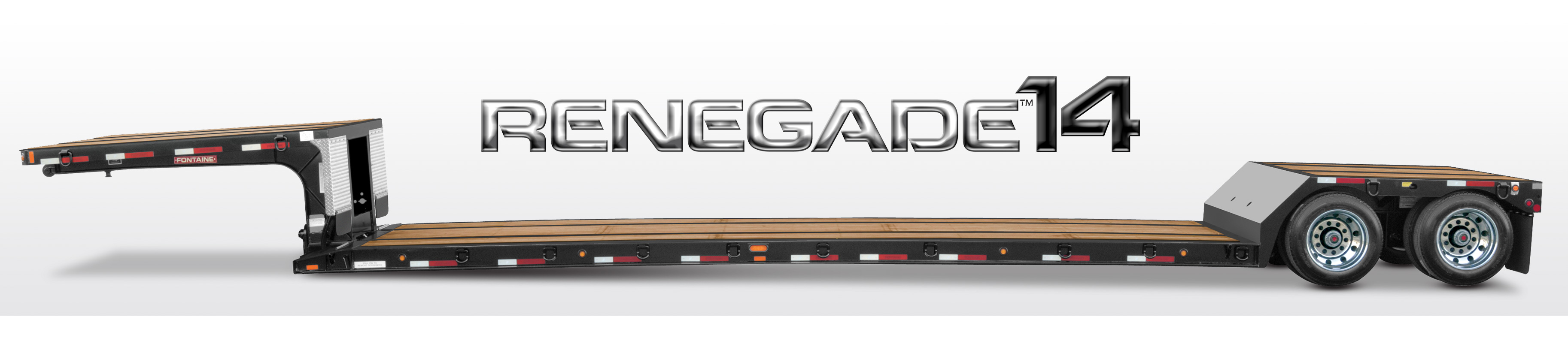

Mechanical gooseneck lowbed trailer for commercial industry
30 tons in 16' length; 35 tons evenly distributed
14" loaded deck heght
50" axle spread
Amber strobes / battery backup
255/70R/22.5 tires
Standard Specifications
Capacity
30 tons in 16-foot length - GAWR and tire ratings determine legal loads - 35 tons evenly distributed
Trailer
Length: 47 feet 11 inches
Width: 102 inches wide
Goosneck
Design: Mechanical removable with fifth wheel guide rollers - Figure-8 plate which provides 50 inches loaded fifth wheel height - swing radius of 81 inches
Swing radius: 81 inches
Platform: Full-width gooseneck platform with 1 1/8 inch wood floor
Deck
Deck type: Flat level deck design
Deck length: 29 feet 2 inches clear deck length
Loaded deck height/clearance: 15 inches with 6 inches ground clearance at front and rear of deck - 14 inches with 5 inches ground clearance at center when fully loaded
Flooring: 2 inch nominal Apitong wood (full width)
Axles
Standard trailer axles: 2
Axle Capacity: 25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.
Axle spread: 50 inches (between axles)
Bogie
Deck to bogie
connection: Fixed
Covered Rear Bogie: Rear bogie platform with 1 1/8 inch wood floor
Rear bogie height: 41.5 inches
Tires
Tire size: 255/70R 22.5 H ply OEM Standard
Weight
Estimated weight from 18,405 lbs. lbs
Standard Features
Framework: All main longitudinal members fabricated with 100,000# minimum yield steel flanges with 50,000# webs
Gooseneck Fenders: Aluminum fenders at rear of gooseneck
Electrical Receptacle: J560 7-pin connector
Crossmembers: On 24 inch centers
Front of deck sloped top down to assist in loading with traction cleats
Sloped steel bogie ramp (full width)
Brakes: 16.5 inches x 7 inches with 5.5 inches autoslacks - heavy duty brake drums - outboard mount
Suspension: Air ride with automatic controls
Spring Brakes: Spring brakes (2 axles)
Wheels:
8.25 x 22.5 steel disc - hub-piloted
Bumper: 3 tail light package
Connections for Future Axle Attachment: Air and electrical connections to go along with connecting ears
Electrical System: DOT sealed beam and harness with LED lights and 4 inch flush mounted battery powered amber strobes
Lash Rings: 14 pair - 28 total
Flag Holders: 2 pair flag holders
ABS: 4S/2M system without diagnostic tool and cable
Marker Lights: 7 marker lights per side including mid-turn
