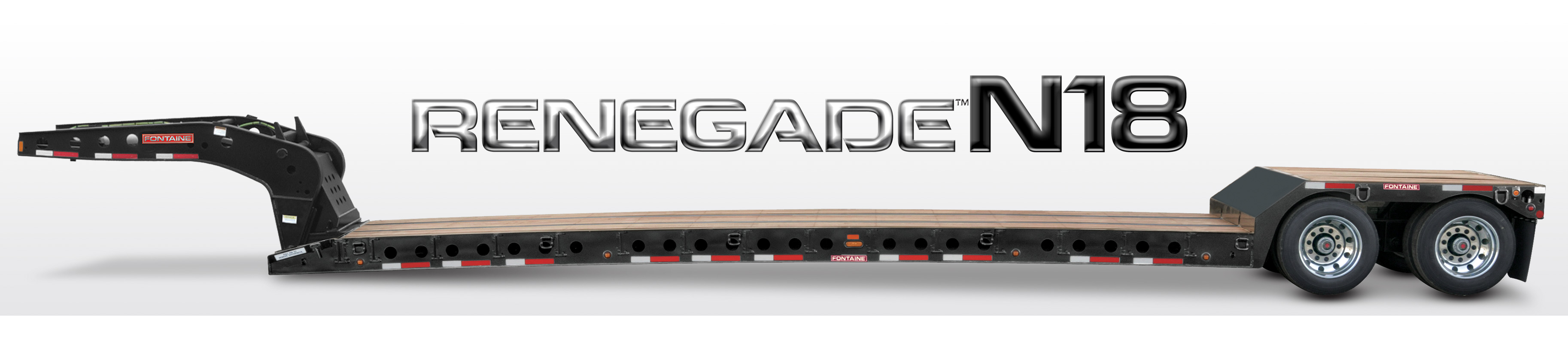

Renegade N18 Lowbed Trailers

Tandem air ride, fixed bogie

Narrow Hydraulic gooseneck lowbed trailer for commercial industry

• 40 tons
• 54.5" axle spread
• 18 inch Loaded Deck Height
• Amber strobes / battery backup
• 255/70R/22.5 tires

Standard Specifications

Capacity

• 40 tons (80,000 lbs) evenly distributed - GAWR and tire ratings determine legal loads

Trailer

• Length: 50 feet 1 inch
• Width: 102 inches wide

Goosneck

• Design: Narrow hydraulic removable non-ground bearing - swing radius of 102 inches (11 ft 11 in overall gooseneck length) - set up for wet line operation
• Swing radius: 102 inches

Deck

• Deck type: Flat level deck design

• Deck length: 29 feet 0 inches clear deck length


• Loaded deck height/clearance: 18 inches with 6 inches ground clearance

• Flooring: 1 3/8 inch nominal wood (full width)

Axles

• Standard trailer axles: 2
• Axle Capacity: 25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.
• Axle spread: 54.5 inches (between axles)

Bogie

• Deck to bogie connection: Fixed
• Covered Rear Bogie: Rear bogie platform with 1 1/8 inch wood floor
• Rear bogie height:  40 inches

Tires

• Tire size: 255/70R 22.5 H ply OEM Standard


Weight

• Estimated weight from 17,240 lbs.


Standard Features

• Framework: All main longitudinal members fabricated with 100,000# minimum yield steel flanges with 50,000# webs
• Loaded Fifth Wheel Height: 50 in nominal loaded fifth wheel height with 5 ride height positions
• Electrical Receptacle: J560 7-pin connector
• Crossmembers: On 12 inch centers
• Front of deck sloped top down to assist in loading with traction cleats
• Extension Brackets: Outriggers - 14 pair - 28 total removable swing type, 1 pair - 2 total removable hook-on type
• Front Bogie Ramp: Sloped steel bogie ramp (full width)
• Brakes: 16.5 inches x 7 inches with 5.5 inches autoslacks - heavy duty brake drums - outboard mount
• Spring Brakes: Spring brakes (2 axles)
• Suspension: Air ride with automatic controls
• Wheels: 8.25 x 22.5 steel disc - hub-piloted
• Wheels: 8.25 x 22.5 LvL One buffed outside/steel inside - hub-piloted or
  8.25 x 22.5 LvL One buffed wheels
• Bumper: 3 tail light package
• Connections for Future Axle Attachment: Air and electrical connections to go along with connecting ears
• Electrical System: DOT sealed beam and harness with LED lights and 4 inch flush mounted battery powered amber strobes
• Lash Rings: 7 pair - 14 total
• Flag Holders: 2 pair flag holders
• ABS: 4S/2M system without diagnostic tool and cable
• Liquid Filled Gauge: Included
• Marker Lights: 7 marker lights per side including mid-turn
• Accent Package: Stainless steel bumper insert
• VIN Plate: Bilingual VIN plate
• Registration/Document Holder: Install registration/document holder

Options

• Loaded Fifth Wheel Height: Dual Cam Pawl Arm Assembly with 7 ride height positions (50 inches nominal)
• 13 HP (min.) Gasoline powered auxiliary power unit
• 8 Pair of D-rings recess mounted in floor inboard of outside beams
• Mini boom trough and traction cleats installed on sloped bogie ramp
• Dust shields on 2 axles
• Flip Axle: Rear Axle -Steel disc wheels or Rear Axle -LvL One buffed outside /steel disc inside or Rear Axle -LvL One buffed wheels
• Dust shields on Flip Axle
• Paint options
