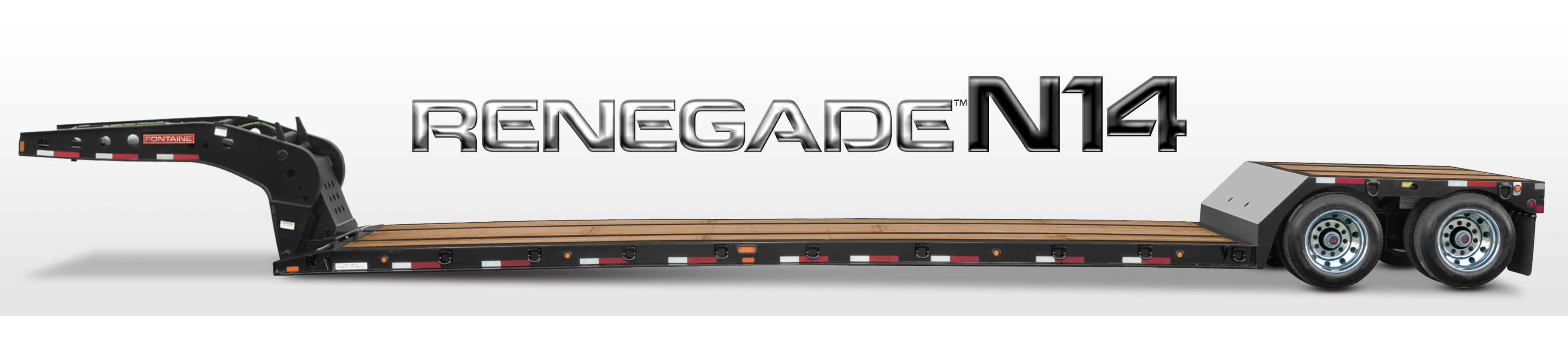

Narrow Hydraulic gooseneck lowbed trailer for commercial industry
30 tons
14 inch Loaded Deck Height
50" axle spread
Low profile 3rd axle ready
Amber strobes / battery backup
Compatibility: Low profile 3rd axle optional
255/70R/22.5 tires
Standard Specifications
Capacity
30 tons in 16-foot length (2 or 3 axles) - GAWR and tire ratings determine legal loads - 35 tons evenly distributed 16-foot rigid 2-point load centered in deck
Trailer
Length: 50 feet 0 inches
Width: 102 inches
Goosneck
Design: Narrow hydraulic removable non-ground bearing - swing radius of 102 inches (11 ft 11 in overall gooseneck length) - set up for wet line operation
Swing radius: 102 inches
Deck
Deck type: Flat level deck design
Deck length: 29 feet 2 inches clear deck length
Loaded deck height/clearance: 15 inches with 6 inches ground clearance at front and rear of deck - 14 inches with 5 inches ground clearance at center when fully loaded
Flooring: 2 inch nominal Apitong wood (full width)
Axles
Standard trailer axles: 2
Axle Capacity: 25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.
Axle spread: 50 inches (between axles)
Bogie
Deck to bogie
connection: Fixed
Covered Rear Bogie: Rear bogie platform with 1 1/8 inch wood floor
Rear bogie height: 41.5 inches
Tires
Tire size: 255/70R 22.5 H ply OEM Standard
Weight
Estimated weight from 19,230 lbs.
Standard Features
Framework: All main longitudinal members fabricated with 100,000# minimum yield steel flanges with 50,000# webs
Loaded Fifth Wheel Height:
50 in nominal loaded fifth wheel height with 5 ride height positions
Electrical Receptacle: J560 7-pin connector
Crossmembers: On 24 inch centers
Front of deck sloped top down to assist in loading with traction cleats
Front Bogie Ramp: Sloped steel bogie ramp (full width)
Brakes: 16.5 inches x 7 inches with 5.5 inches autoslacks - heavy duty brake drums - outboard mount
Spring Brakes: Spring brakes (2 axles)
Suspension: Air ride with automatic controls
Wheels:
8.25 x 22.5 steel disc - hub-piloted
Bumper: 3 tail light package
Connections for Future Axle Attachment: Air and electrical connections to go along with connecting ears
Electrical System: DOT sealed beam and harness with LED lights and 4 inch flush mounted battery powered amber strobes
Lash Rings: 12 pair - 24 total
Flag Holders: 2 pair flag holders
ABS: 4S/2M system without diagnostic tool and cable
Liquid Filled Gauge: Standard
Marker Lights: 6 marker lights per side including mid-turn
