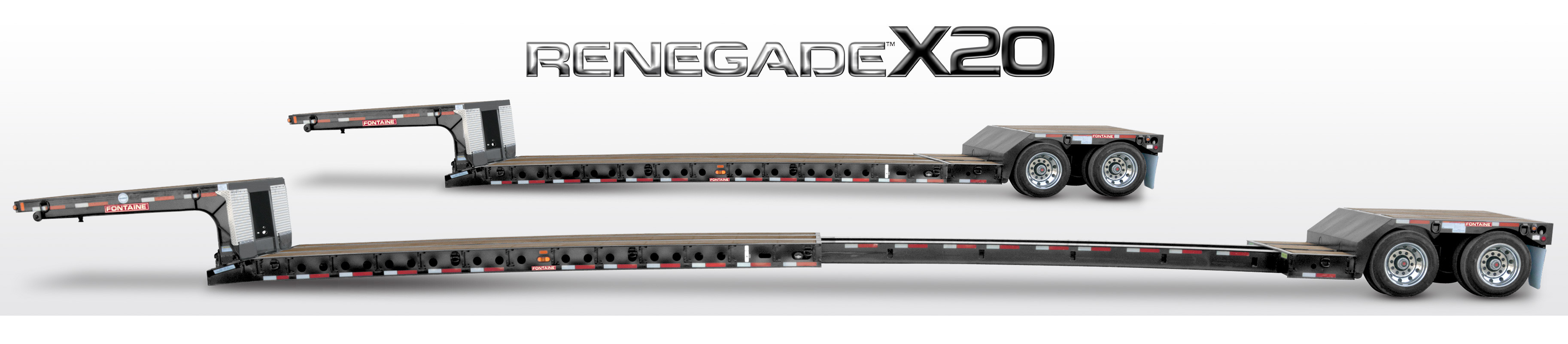

Renegade X20 Extendable Deck Lowbed Trailers

Tandem air ride, fixed bogie

Mechanical gooseneck lowbed trailer for commercial industry

• 40 tons
• Extendable/Telescopic
• 20 inch Loaded Deck Height
• 54.5" axle spread
• Amber strobes / battery backup
• Compatibility: Designed to accept optional flip neck extension and third flip axle
• 255/70R/22.5 tires

Standard Specifications

Capacity

• 40 tons in 16-foot length - GAWR and tire ratings determine legal loads

Trailer

• Length: 47 feet 11 inches ** unless 34 60 deck length selected then overall length is 53
• Width: 102 inches

Goosneck

• Design: Mechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loaded
• Swing radius: 81 inches
• Platform: Full width gooseneck platform with 1 1/8 inch wood floor

Deck

• Deck type: Flat level telescopic deck design

• Deck length: 29 feet 0 inches clear deck length (retracted) - 50 feet 0 inches (extended)
  34 feet 0 inches clear deck length (retracted) - 60 feet 0 inches (extended) ** Note trailer overall length is 53 feet


• Loaded deck height/clearance: 20 inches with 6 inches ground clearance

• Flooring: Flooring: 1 3/8 inch nominal wood (full width)

Axles

• Standard trailer Axles: 2
• Axle Capacity: 25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.
• Axle spread: 54.5 inches spread (between axles)

Bogie

• Deck to bogie connection: Fixed
• Covered Rear Bogie: Rear bogie platform with 1 1/8 inch wood floor
• Rear bogie height: 41 inches

Tires

• Tire size: 255/70R 22.5 H ply OEM Standard


Weight

• Estimated weight from 20,670 lbs.


Standard Features

• Framework: All main longitudinal members fabricated with 100,000# minimum yield steel flanges with 50,000# webs
• Gooseneck Fenders: Aluminum fenders at rear of gooseneck
• Electrical Receptacle: J560 7-pin connector
• Crossmembers: On 24 inch centers
• Front of deck sloped top down to assist in loading with traction cleats
• Extension Brackets: Outriggers - 14 pair - 28 total removable swing type, 1 pair - 2 total removable hook-on type
• Front Bogie Ramp: Sloped steel bogie ramp (full width)
• Brakes: 16.5 inches x 7 inches with 5.5 inches autoslacks - heavy duty brake drums - outboard mount
• Spring Brakes: Spring brakes on 2 axles
• Suspension: Air ride with automatic controls
• First Axle Lift: Chain lift included on first axle when 34ft deck is selected
• Wheels: 8.25 x 22.5 steel disc - hub-piloted
• Bumper: 3 tail light package
• Connections for Future Axle Attachment: Air and electrical connections to go along with connecting ears
• Electrical System: DOT sealed beam and harness with LED lights and 4 inch flush mounted battery powered amber strobes
• Lash Rings: 9 pair - 18 total
• Flag Holders: 2 pair flag holders
• ABS: 4S/2M system without diagnostic tool and cable
• Liquid Filled Gauge: Included
• Marker Lights: 8 marker lights per side including mid-turn
• Accent Package: Stainless steel accent package
• VIN Plate: Bilingual VIN plate
• Registration/Document Holder: Install registration/document holder

Options

• 36 inch flipbox (gooseneck extension) with provision for removable guide rollers - Increases swing radius to 117 inches
• Steel toolbox between risers on gooseneck
• 8 Pair of D-rings recess mounted in floor inboard of outside beams ** NOTE: Must select High Density Crossmember Package
• High Density Crossmember Package- Additional stub crossmembers installed between existing crossmembers, net spacing of 12 inches
• Mini boom trough and traction cleats installed on sloped bogie ramp
• Dust shields on 2 axles
• 8.25 x 22.5 LvL One buffed outside/steel inside - hub-piloted or 8.25 x 22.5 LvL One buffed wheels
• Rear Axle -Steel disc wheels or
  Rear Axle -LvL One buffed outside /steel disc inside or Rear Axle -LvL One buffed wheels
• Dust shields on Flip Axle
• Paint options
