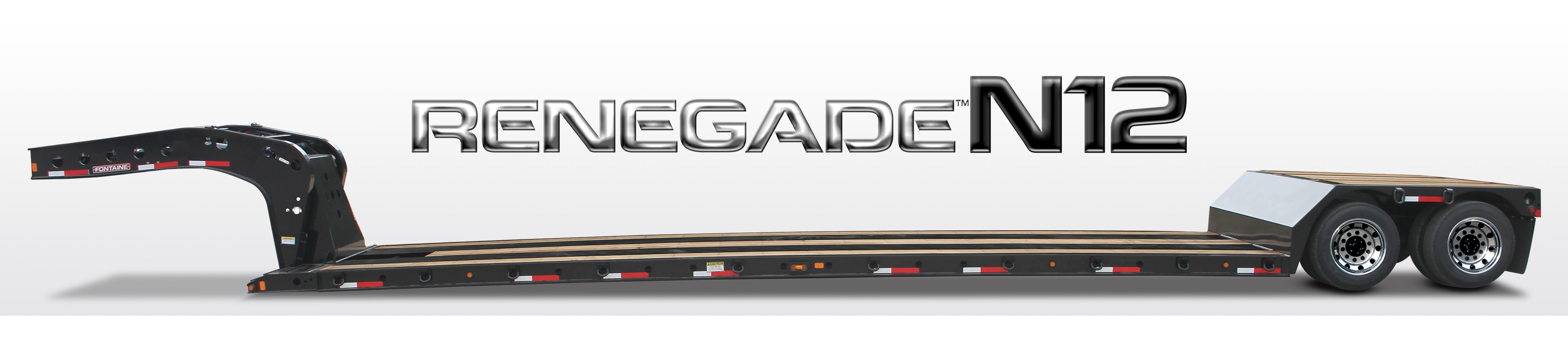

Renegade N12 Lowbed Trailers

Tandem air ride, fixed bogie

Narrow hydraulic gooseneck lowbed trailer for commercial industry

• 30 tons
• 50" axle spread
• 12 inch Loaded Deck Height
• Amber strobes / battery backup
• Compatibility: Low profile 3rd axle optional
• 255/70R/22.5 tires

Standard Specifications

Capacity

• 30 tons in 16-foot length - GAWR and tire ratings determine legal loads -30 tons in 20-foot with 3rd axle

Trailer

• Length: 53 feet 0 inches
• Width: 102 inches wide

Goosneck

• Design: Narrow hydraulic removable non-ground bearing - swing radius of 84 inches (11 ft 2 in overall gooseneck length) - set up for wet line operation
• Swing radius: 84 inches
• Platform: Optional gooseneck platform for greater loading space with 1-1/8" apitong flooring

Deck

• Deck type: Flat level deck design

• Deck length: 32 feet 11 inches clear deck length


• Loaded deck height/clearance: 12 inches with 4 inch ground clearance (Fully Loaded)

• Flooring: 1 3/8 inch nominal Apitong wood (full width)

Axles

• Standard trailer axles: 2
• Axle Capacity: 25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.
• Axle spread: 50 inches (between axles)

Bogie

• Deck to bogie connection: Fixed
• Covered Rear Bogie: Rear bogie platform with 1 1/8 inch wood floor
• Rear bogie height: 41.5 inches

Tires

• Tire size: 255/70R 22.5 H ply OEM Standard


Weight

• Estimated weight from 20,525 lbs.


Standard Features

• Framework: All main longitudinal members fabricated with 100,000# minimum yield steel flanges with 50,000# webs
• Loaded Fifth Wheel Height: 50 in nominal loaded fifth wheel height via dual cam pawl arm assembly with 7 ride height positions
• Electrical Receptacle: J560 7-pin connector
• Crossmembers: On 18 inch centers
• None, Front of deck sloped top down to assist in loading with traction cleats
• Front Bogie Ramp: Sloped steel bogie ramp (full width)
• Brakes: 16.5 inches x 7 inches with 5.5 inches autoslacks - heavy duty brake drums - outboard mount
• Suspension: Air ride with automatic controls
• Wheels: 8.25 x 22.5 steel disc - hub-piloted
• Bumper: 3 tail light package
• Connections for Future Axle Attachment: Air and electrical connections to go along with connecting ears
• Electrical System: DOT sealed beam and harness with LED lights and 4 inch flush mounted battery powered amber strobes
• Lash Rings: 12 pair - 24 total
• Flag Holders: 2 pair flag holders
• ABS: 4S/2M system without diagnostic tool and cable
• Liquid Filled Gauge: Standard
• Marker Lights: 6 marker lights per side including mid-turn
• VIN Plate: Bilingual VIN plate
• Registration/Document Holder: Install registration/document holder

Options

• 13 HP (min.) Gasoline powered auxiliary power unit
• Dust shields on 2 axles
• Wheels: 8.25 x 22.5 LvL buffed outside/steel inside - hub-piloted or
  8.25 x 22.5 LvL buffed wheels
• Flip Axle: Rear Axle -Steel disc wheels or
  Rear Axle -LvL One buffed outside /steel disc inside or Rear Axle -LvL One buffed wheels
• Dust shields on Flip Axle
• Paint options
